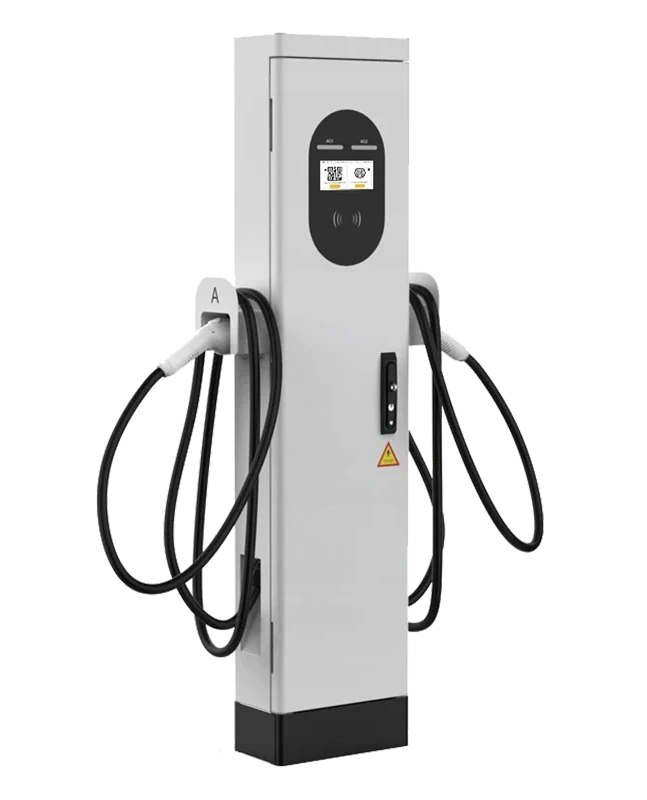

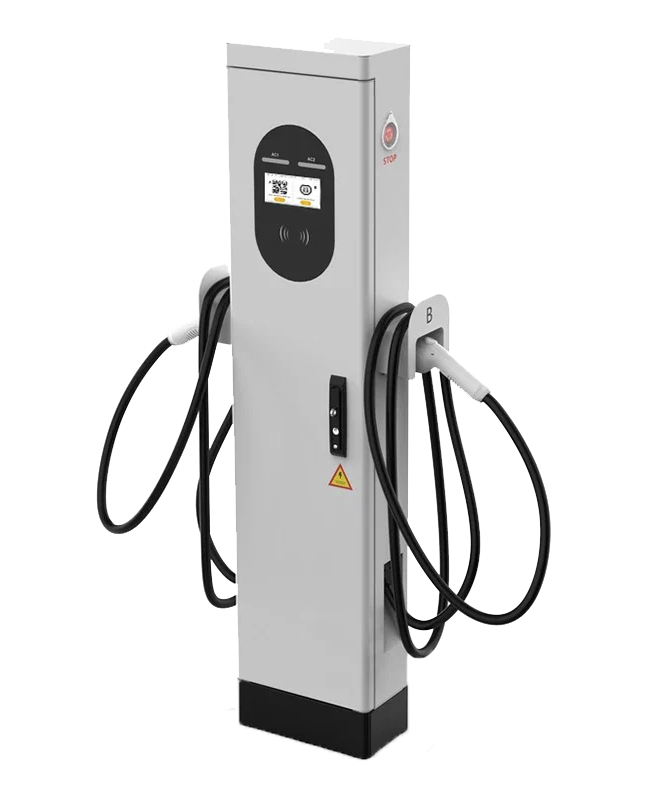

Dual Floor-mounted2*22KW AC Charger
This floor mounted AC EV charger has an IP54 patented design case for outdoor and indoor use. Customizing all types of charging connectors makes it highly flexible and compatible with all-electric vehicles.
With full protection to avoid all kinds of charging safety hazards, it will automatically power off after the vehicle is fully charged, to protect the car battery and prolong the working life.
Remote O&M
Scheduler
PV Charging
APP
RFID
Plug to Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth
Load Balancing
Charge Smart, Profit In
Unlock Business Efficiency with this Series. Experience efficient charging up to 2*22kW, boosting revenue for businesses. This advanced charging solution facilitating simultaneous charging for 2 EVs, ensuring efficiency with a touch of sophistication.
Safe Charging Anywhere, Anytime
With OCPP1.6 Json-supported,this series allows scheduled charging through OCPP platform, Plug to Play, or RFID Card, ensuring both flexibility and multi-dimensional security for data safety.
Your Benefits
01. Easy/Convenient
- Built-in Socket Holder
- 15mins Quick Installation
Floor Stand - Type 2 Cable/Socket
02. Flexible
- Connectivity：Wi-Fi/4G/Ethernet/Bluetooth
- Start Mode: Plug&Play, RFID Card, App
- Rated Power： 2x22kW
- Cable length:5m
03. Safety
- IP54 Ingress Protection
- IK10 Impact Protection
- High Cyber Security Protection
- Multi Electrical Protection
- Type A +6mA DC RCD
- MID certified meters
04. Customizable Branding
- White Label Service
- Customized Service
- ODM Service
- OEM Service
Specification
Maximum Charging Power
2*22kW
Dimension
1400mm*350mm*160mm (H * W * D)
Weight
34kg
Voltage
400V AC±10%
Current
2*32A
Charge Connector
Type 2 Socket
5m Cable
Start Mode
Plug to Play/ RFID card/OCPP
Communication
Wi-Fi & Bluetooth & Ethernet
Wi-Fi & Bluetooth & 4G
POS payment(optional)
Certification
CE
Safety Protection
IP55
IK10
FAQs for Anaheim EV Charger
What is the charging speed of the charger?
Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, this dual AC Charger can provide the following ranges after 1 hour of charging:
2*22kW version: 138 kilometers
