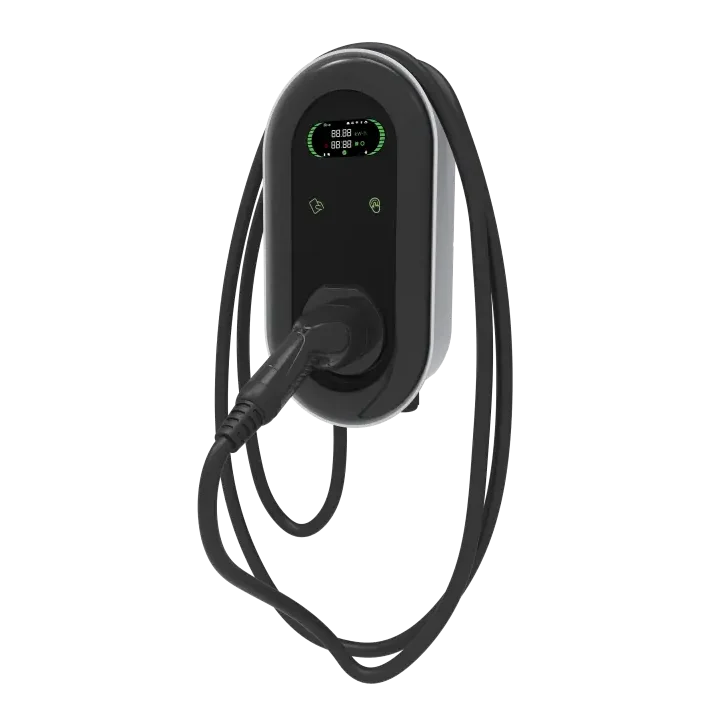

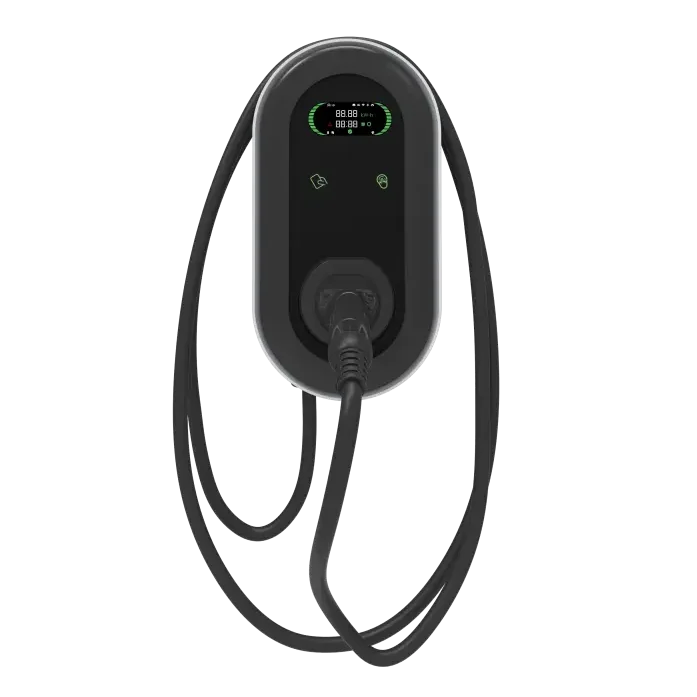

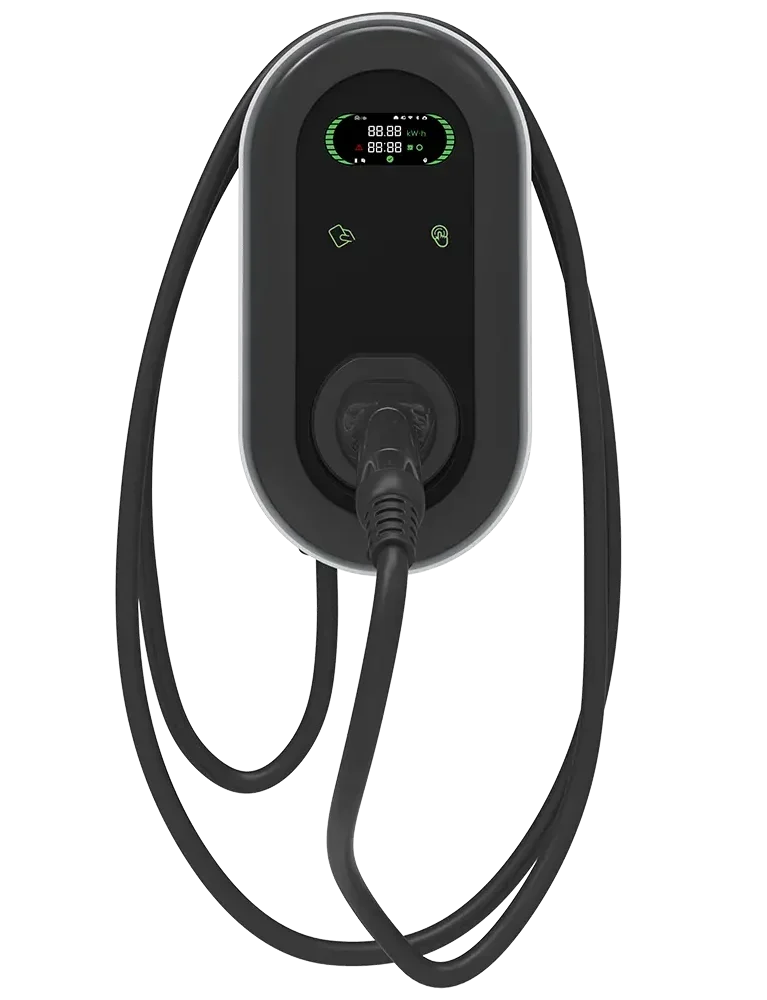

AE-A-G Pro 7/11/22KW AC Wallbox
This series charger is to prioritize areas where DC charging stations cannot be installed. Given economic and cost-effective AC Charger meets fundamental charging needs at minimal expense.
It can be connected with CT/CT hub to realize dynamic load balancing which allowed multiple public chargers in one location can be integrated in one network.In addition,this series is ready to connect your PV solar system which allowed green energy being prioritized to use.With OCPP 1.6 and App,the operation and charging status is monitored and controlled by OCPP backend or App.
Remote O&M
Scheduler
PV Charging
APP
RFID
Plug to Play
OCPP
Wi-Fi
Ethernet
4G
Bluetooth
Load Balancing
Savings on Electricity Bills
AE-A-G Pro series allows smart charging with solar energy，it optimize electricity use with dynamic load management, reducing costs and enhancing power savings.

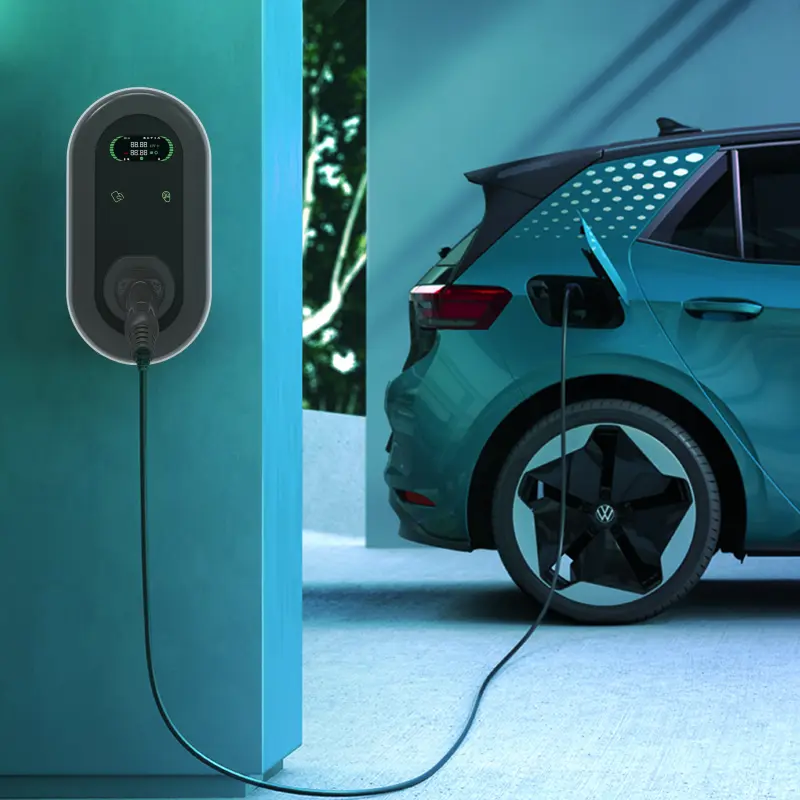

Home-Commercial EV chargers
This series charger is to prioritize areas where DC charging stations cannot be installed. Given economic and cost-effective AC Charger meets fundamental charging needs at minimal expense.
Your Benefits
01. Easy/Convenient
- Light Weight
- Cable Length:5m
- 10 mins quick Installation

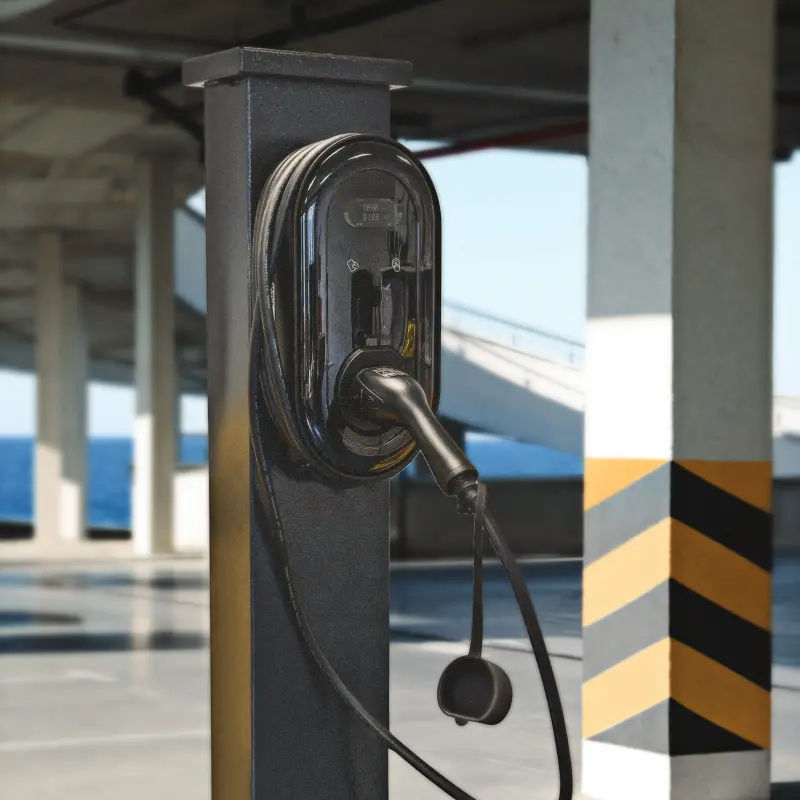

- Wall-mount/Pole mount(Optional)

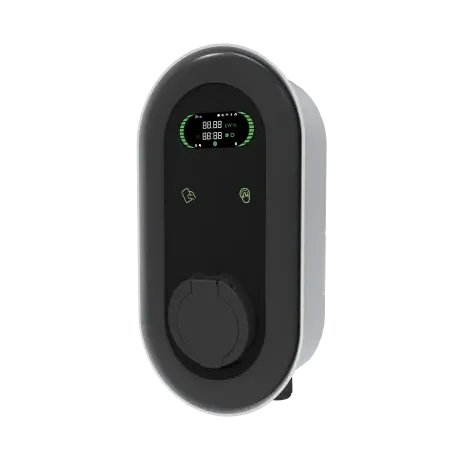

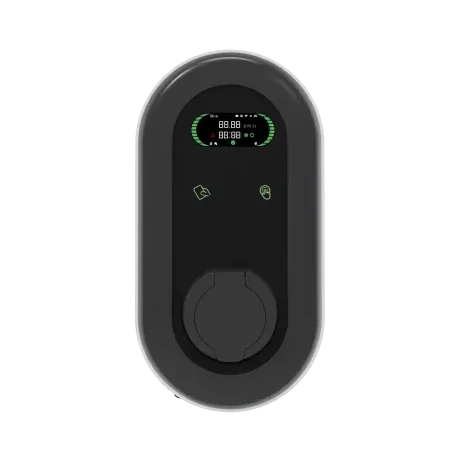

- Type 2 Cable/Socket Connector
02. Flexible
- Connectivity: Wi-Fi/4G/Ethernet/Bluetooth
- Start Mode:Plug to Play, RFID Card, App
- Rated Power: 7kW//11/22kW
03. Safety
- IP65 Ingress Protection
- IK10 Impact Protection
- Multi Electrical Protection
04. Smart Charging
- Scheduled Charging
- Dynamic Load Management
- Far-field remote control App
- Share charging to family members
05. Customizable Branding
- White Label Service
- Customized Service
- ODM Service
- OEM Service
06. PV Charging
- 0 emission PV charging
- Simple integration with PV systems
- Adjustable current for optimized PV usage
- Saving from electricity bills
Specification
Maximum Charging Power
22kW
Dimension
390*205*115mm (H * W * D)
Weight
2.4kg (socket version)
Voltage
400V AC (22kW)
Current
32A
Charge Connector
Type 2 Cable
5m Cable
Start Mode
Plug to Play/ RFID card/ App
Communication
Wi-Fi & Bluetooth (Standard)
4G/LAN (Optional)
Certification
CE
Safety Protection
IP55
IK10
FAQs for Anaheim EV Charger
What is the charging speed of the charger?
Assuming an electric car consumes 15 kWh of electricity per 100 kilometers, our AE-A-G Pro Series wallbox can provide the following ranges after 1 hour of charging:
22kW version: 147 kilometers
